# Landing Gear

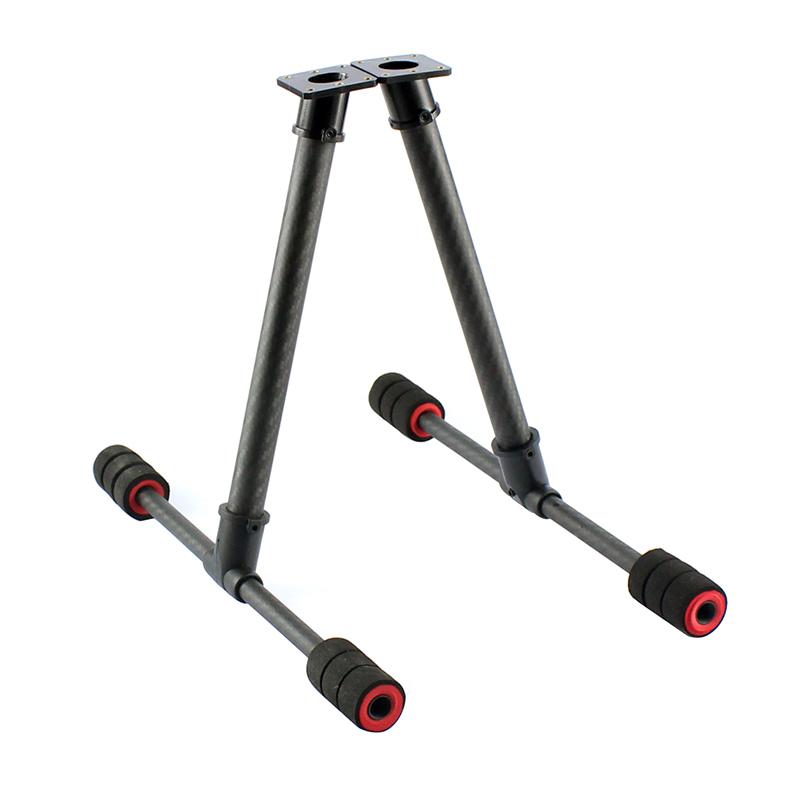

![Ridged landing gear](/files/-MP5Mvp5Zq6owPIsOVs7)

![Ridged landing gear option](/files/-MP5O52dBs919kQni-zE)

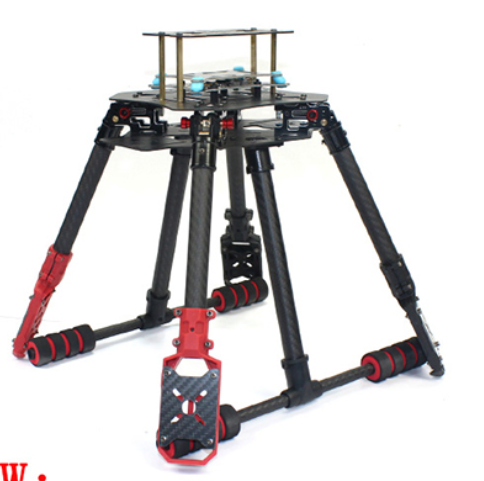

![Folding landing gear option](/files/-MP5Ny6p6BUwZClu87ML)

## Lower Section Assembly

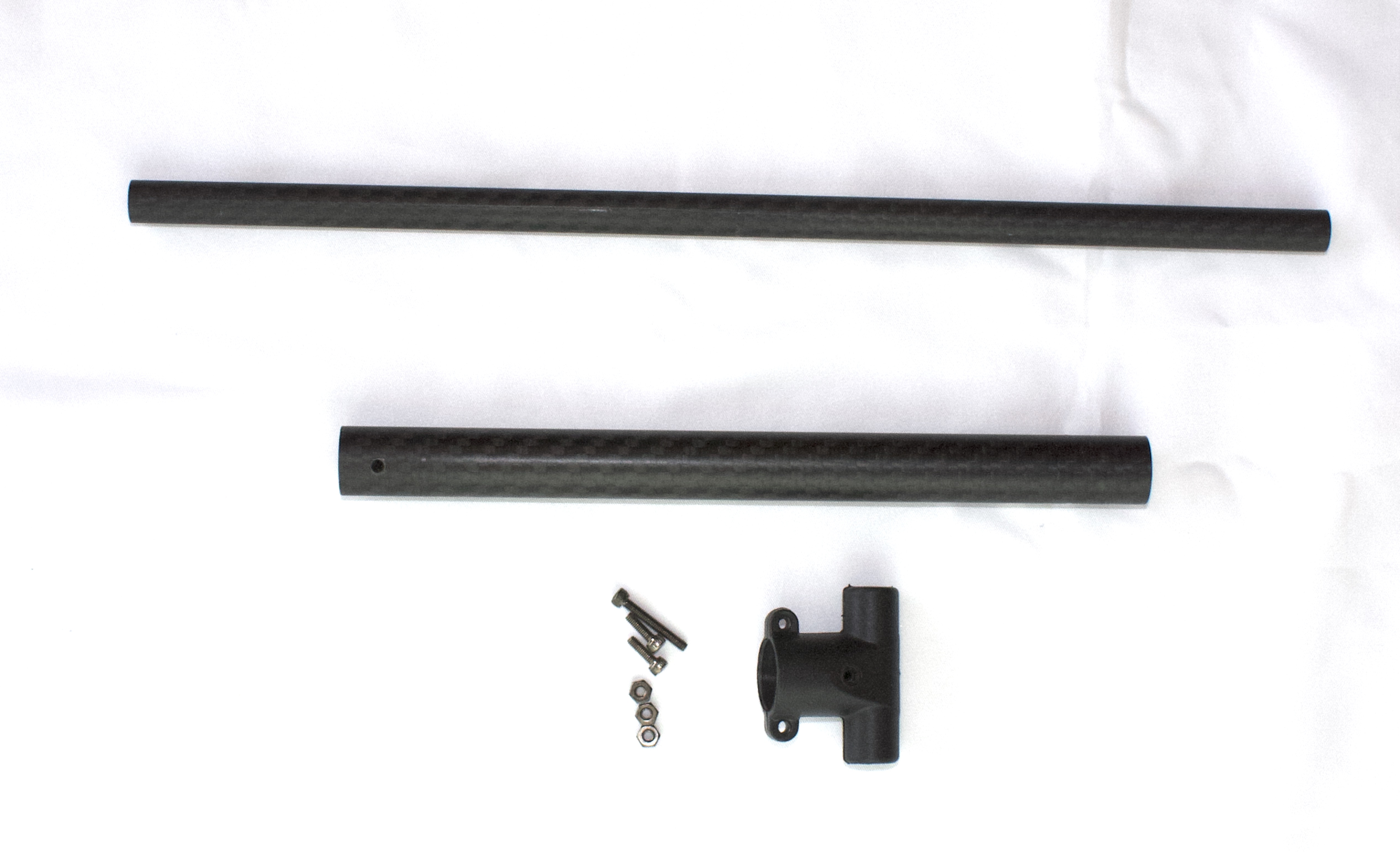

Landing gear components.

![](/files/-MPol0ZaKDS1XRqhyodW)

Slide T-connector onto the end of the longer, thinner tube.

![](/files/-MPooLEa5qX24fQnuC_v)

Slide the T-connector to the center of the tube.

![](/files/-MPooQvxYafL6d0eMYMS)

Insert nuts into the 3 T-connector spots.

![](/files/-MPoo17HBUqNQCv5HYW-)

![](/files/-MPookS6rlVouiGDQPu1)

![](/files/-MPop5QrFdUhYp8Ab0lS)

Insert 3 screws.

![](/files/-MPooousswWOz5zKEk9J)

Loosely tighten all 3 screws.

![](/files/-MPootSDhaw1G586NqQ3)

![](/files/-MPopBQ99MBp6SdCIEna)

Slide the shorter, thicker tube into the T-connector. If you have trouble getting the tub to slide into the T-connector, loosen the screws a little more.

![](/files/-MPoprB-0qDwsnIW4uKO)

Tighten all 3 screws on the T-connector.

![](/files/-MPopyV69UNq2WxsI_UB)

Completed lower section assembly.

![](/files/-MPoqFtSCzOdK5p_dWQj)

## Folding Landing Gear Assembly

Place the landing gear hinge/elbow at the end of the thicker tube with the hole.

![](/files/-MPorHYcjhbCuO2b-lPY)

Insert the screw through the hinge and tube.

![](/files/-MPosJ_7ynLbAzpweX_s)

Insert a nut and tighten the screw into place.

![](/files/-MPosO5NSpEksdvY5HUZ)

![](/files/-MPos6An_oMf4s-lfg-x)

Completed folding landing gear assembly.

![](/files/-MPp6l1_HKuHrMaoRv4o)

## Ridged Landing Gear

![](/files/-MPp2Em62dF5AAbzhD3T)

Insert nut into the side hole of the landing gear mount.

![](/files/-MPp33PiW_JZM5vwSi_A)

Insert the thicker landing gear tube into the landing gear mount.

![](/files/-MPozcl_8-NCUwfskKvn)

Insert a screw through the landing gear mount and tube and tighten in place.

![](/files/-MPp2xdJBzPIKklKtIy5)

Install with screws on the lower side of the upper plate.

![](/files/-MPp5CXzljIUxlLFEV32)
