Notes before beginning

PreviousIntroduction NextSafety

Last updated 4 years ago

Was this helpful?

Lay out all parts and ensure that everything is there and that you have a safe place to store it all. Begin build with the Torx T8 or Allen driver bit in place. Initial work will be started on the lower face plate (upper face plate has the triple chevron and large central opening).

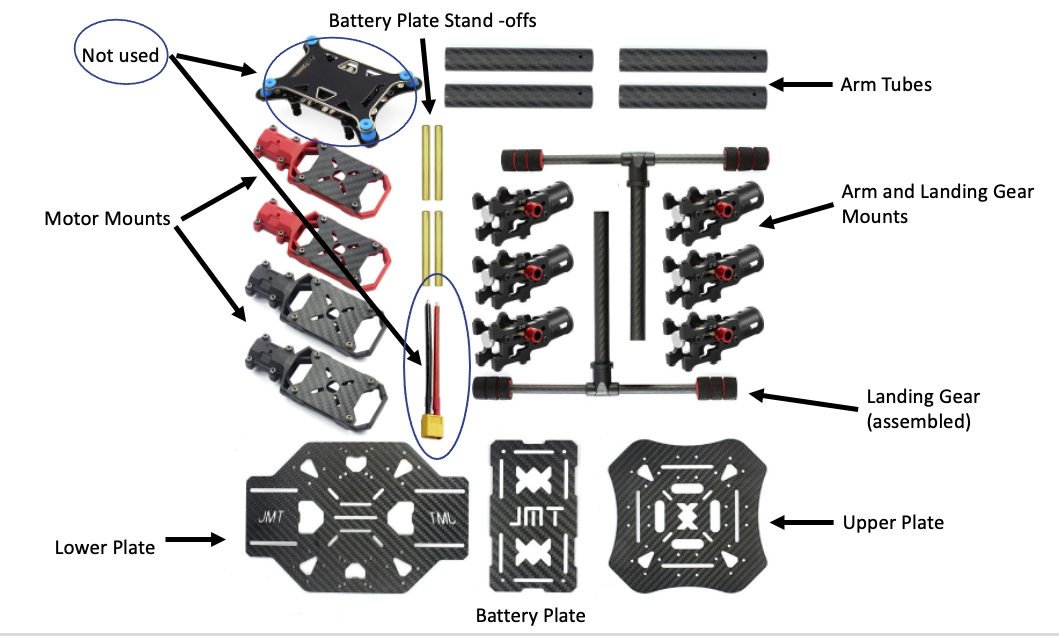

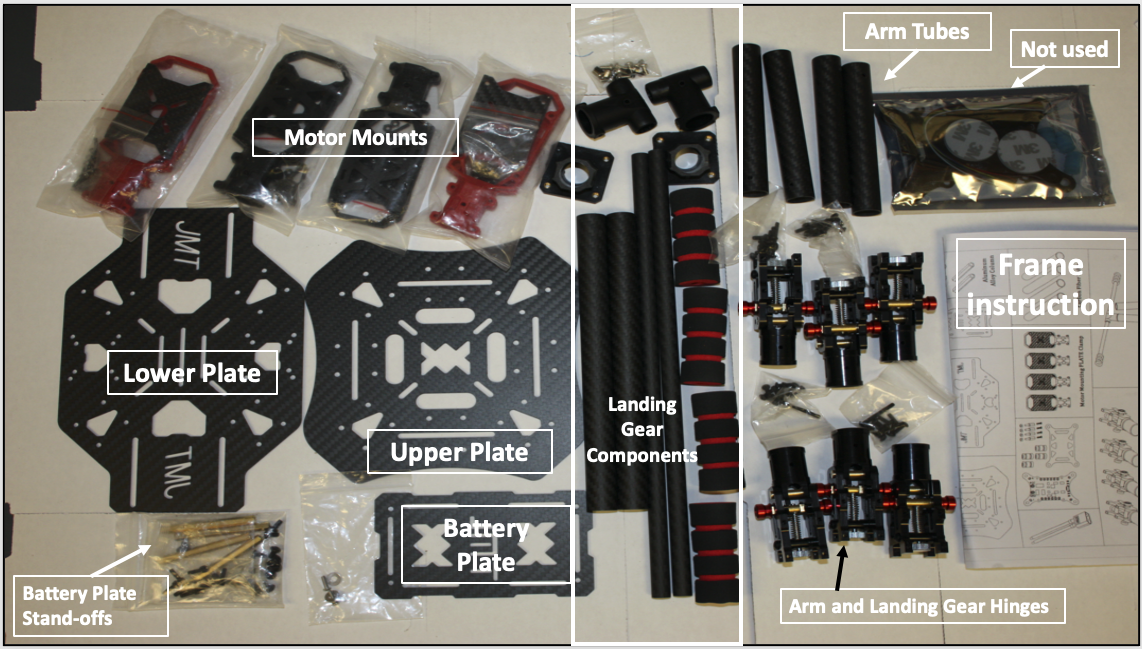

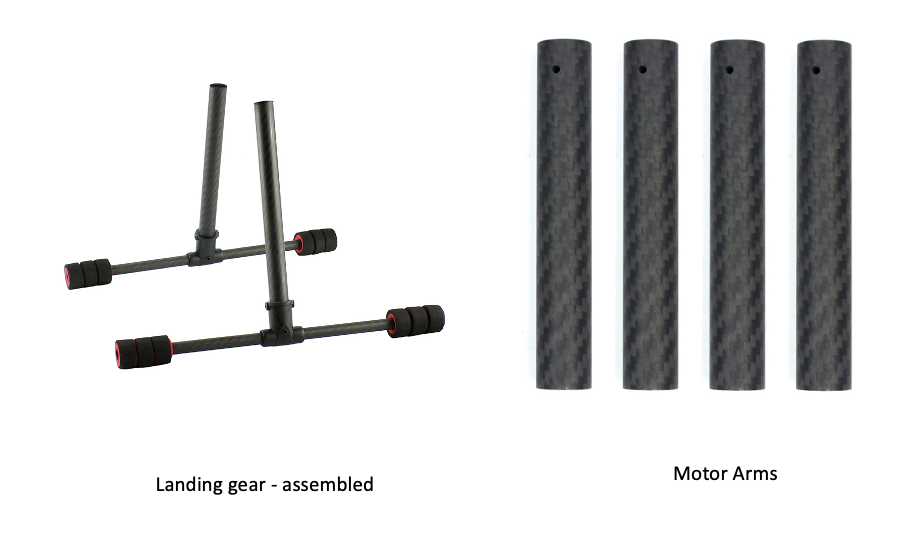

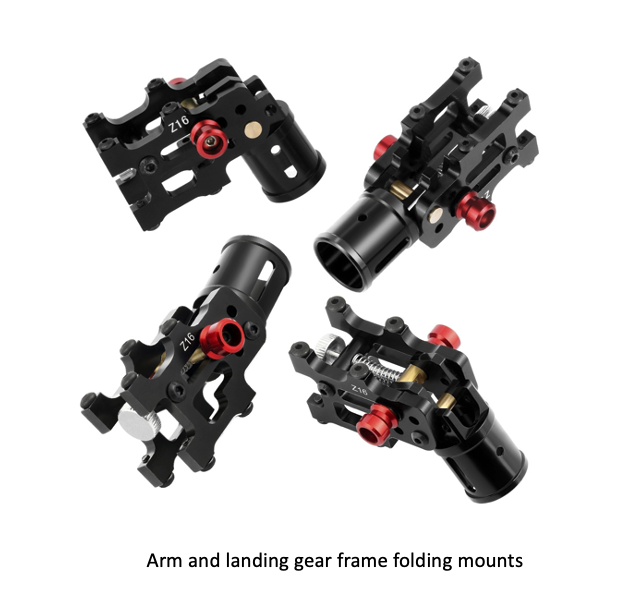

All frame parts laid out.

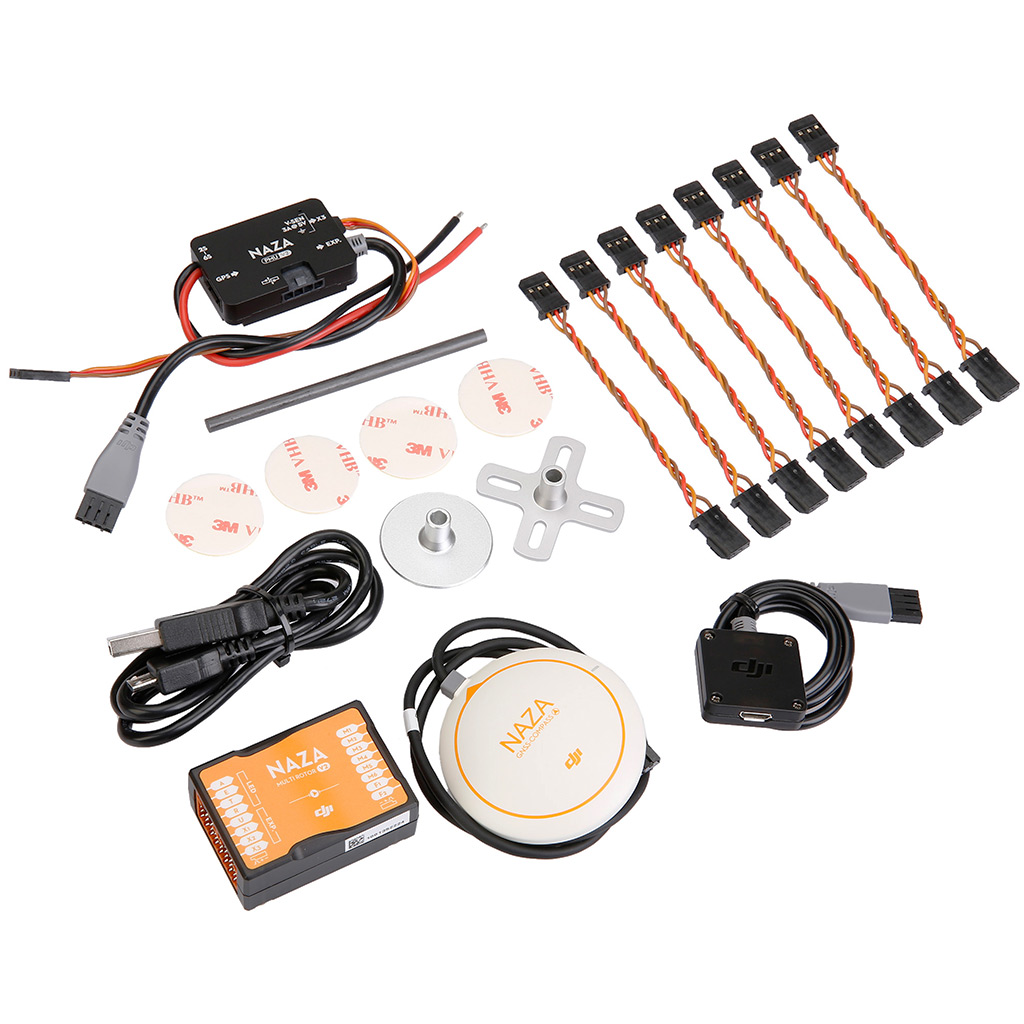

Naza Flight Controller

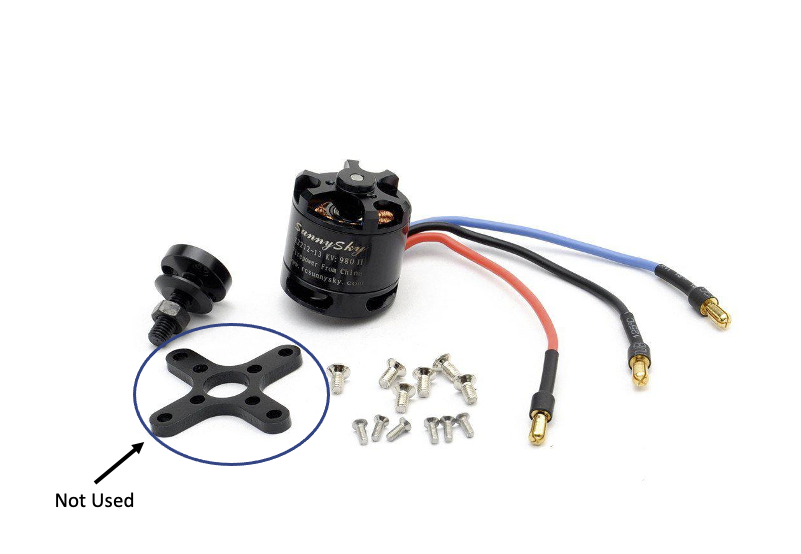

Motors

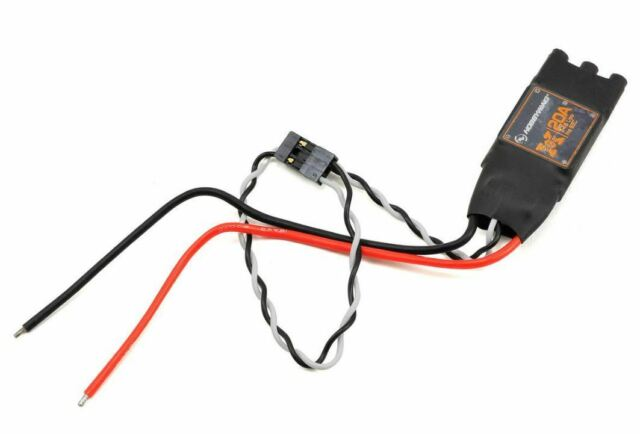

Electronic Speed Controllers (ESC)

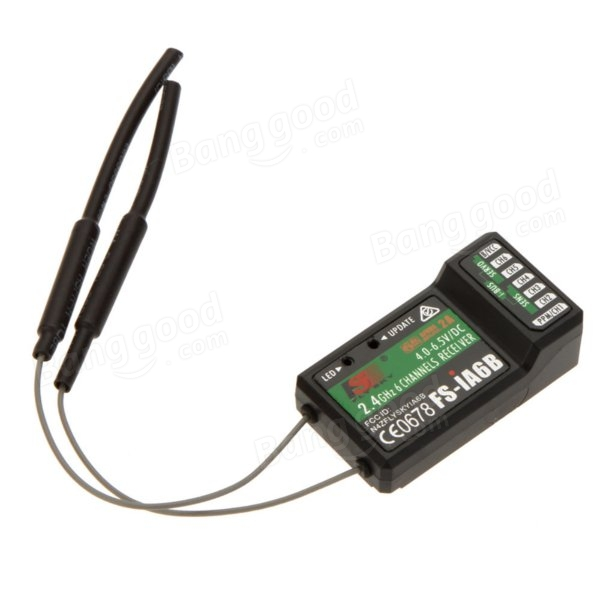

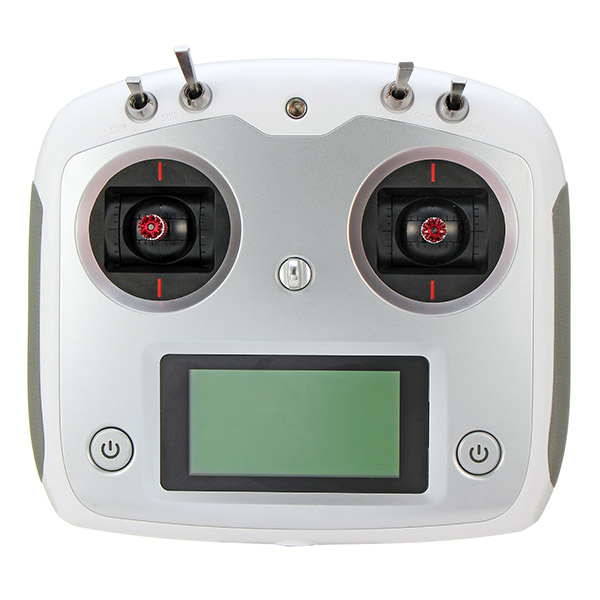

Transmitter and Receiver

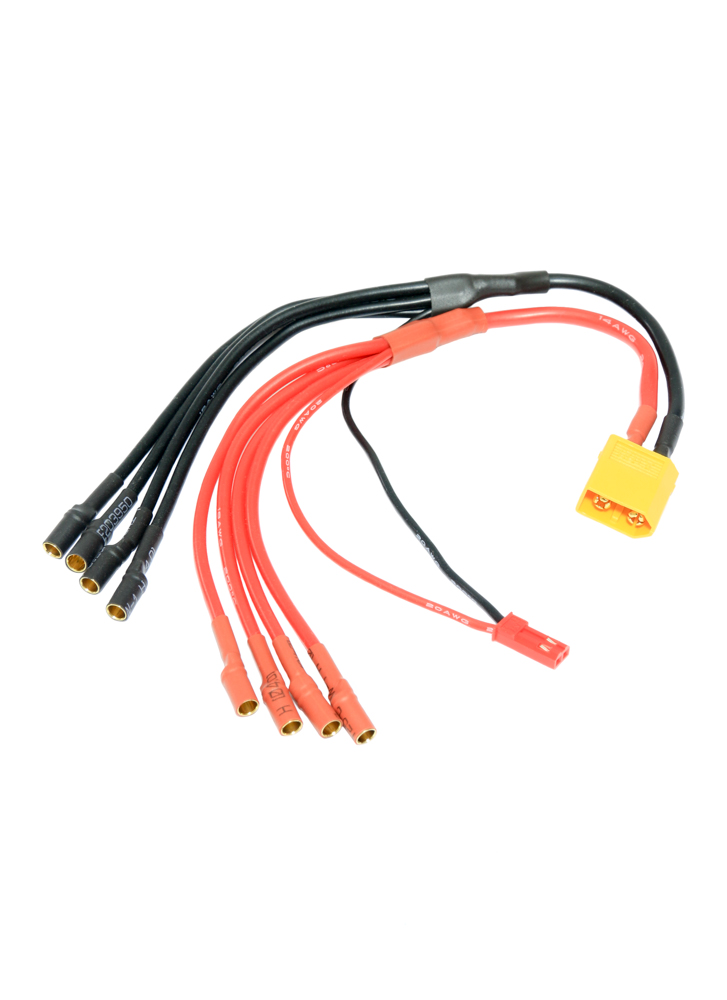

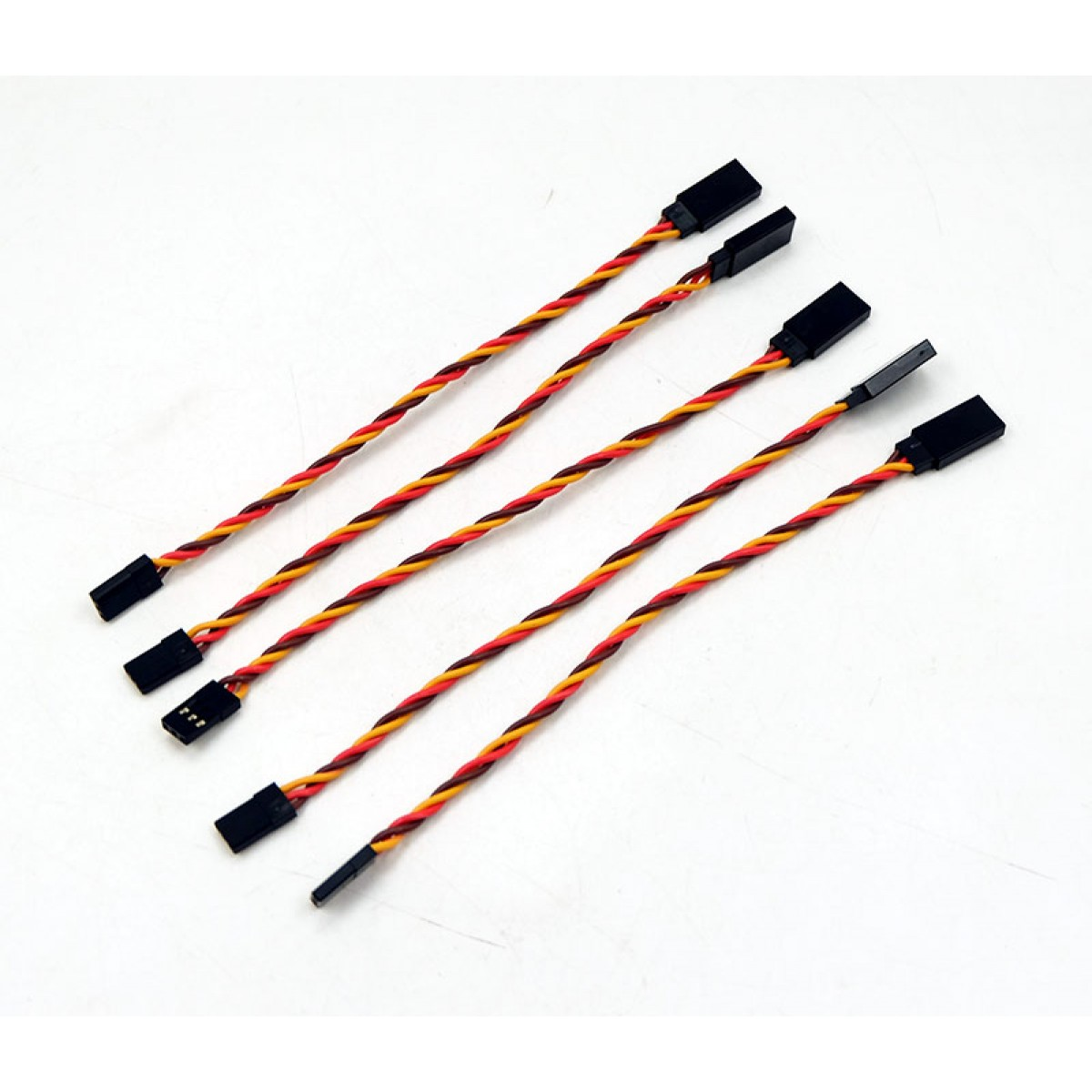

Wire Harness
